BUB E

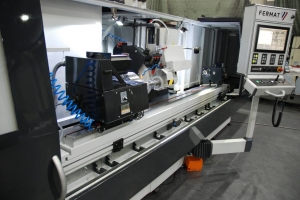

BUB E CNC is a fully CNC controlled grinding machine with a controlled axis X (grinding wheel head in-feed), Z (longitudinal table feed), axis C (grinding wheel peripheral speed).

The grinder is primarily designed for controlled grinding of rotation cylindrical and conical external surfaces of workpieces by longitudinal or plunge-cut grinding methods. As a matter of course, form grinding and grinding of various transitions among different diameters can be performed. The grinder also allows grinding of face surfaces and grinding of cylindrical and conical internal holes with the use of internal grinding attachments (other version). The workpieces may be clamped between centers or by flying-mode into the chuck. The drive headstock as well as grinding wheel head and upper table may be inclined for grinding cones. It is possible to grind either at the centers or in the flying-mode with the workpiece clamped in the chuck or on the magnetic plate.

The grinding wheel head and table are moved in the line by ball screws and servomotors. The BUB E CNC is designated for workpieces weighing up to 500 kg.

Cylindrical grinding machine BUB E CNC can be additionally equipped with automatic balancing system, in-process gauge, axial probe, super finish attachment, automatic (electric) rests, XZ ruler etc.
