Description

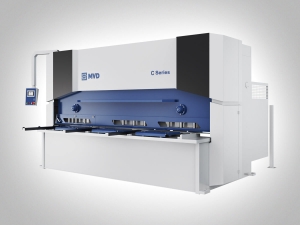

C Series Hydraulic Variable Rake Angle Shears automatic cutting angle calculating, provides high cutting quality in the widest range of materials type and sheet thickness. Automatically calculates and apply; cutting angle, blade gap adjustment, stroke of the cutting length, back gauge positioning according to material type and thickness with CNC controller and servo hydraulic valve.
Standard Features
- • ELGO P40T Touch screen NC Control Unit
- • Rexroth / Hoerbiger hydraulic system
- • CNC controlled Auto blade gap, stroke and blade ad- justment system
- • 1.000 mm NC Controlled, Programmable, motorized back gauge
- • 250 mm throat depth
- • Programmable back gauge retract feature
- • Back gauge swing-up feature for sheets longer than 1.000 mm
- • Stroke adjustment on the control panel to increase stroke/min during cutting short parts
- • Transfer table with roller balls
- • Upper blade 2 edges / Bottom blade 4 edges
- • Components that reduces maintenance need.
- • Front support arms 1.000 mm, with ruler scale, T channel & flip stops
- • Front and side protective covers
- • Illumination cutting line
- • Front finger protection guard, 1.000mm which has
- swing-up feature
- • Foot pedal
- • Special designed covers with movable controller arm
- • Emergency stop buttons
Optional Features
- • Pneumatic Sheet support system (Type 1)
- • Pneumatic Sheet support system- with Return to sender feature (Type 2)
- • Angular gauge 0-180º
- • Longer front sheet supports & squaring arm
- • Special throat depth 500 mm
- • Full length opening front finger guard
- • Laser guard for front finger protection
- • Special alloy blades
- • Laser cutting line
- • Oil cooler and oil heater
- • Automatic or Manual central lubrication
- • AC cooling unit electrical cabinet
- • CNC controlled front sheet feeder arms
- • Rear laser barrier with CE conformity
- • Machine without special design covers
