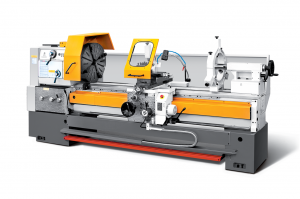

CU730

Description

STANDARD MACHINE SPECIFICATION			CU730
CAPACITY	Height of centers	mm	365
	Swing over bed	mm	730
	Swing over cross slide	mm	500
	Swing in gap	mm	930
	Width of bed	mm	400
	Distance between centers	mm	1000; 1500; 2000; 3000; 4000; 5000
SPINDLE	Spindle nose DIN 55027	No	11
	Spindle bore	mm	103
	Spindle taper	Metric	120
HEAD STOCK	Number of spindle speeds		21
	Spindle speed ranges	rpm	12,5 – 1250
	Main motor power	kw	11
FEEDS	Number of feeds		120
	Longitudinal feed range	mm/rev	0,04 – 12
	Cross feed range	mm/rev	0,02 – 6
THREADS	Number of threads		64
	Metric thread range	mm	0,5 – 120
	Inch thread range	Tpi	60 – ¼
	Module thread range	Module	0,125 – 30
	DP thread range	DP	240 – 1
CARRIAGE	Cross slide travel	mm	390
	Top slide travel	mm	130
TAIL STOCK	Quill diameter	mm	90
	Quill taper	Morse	No.5
	Quill travel	mm	230
WEIGHT	For DBC 2000 mm	kg	3500
