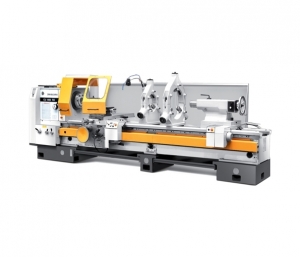

Description
Unlike universal lathes, here the speed control is infinitely variable through the use of a frequency inverter.
It is possible to provide a “Continuous cutting speed” (V-const), i.e. the cutting speed is maintained during a change in the turning diameter, thus achieving higher precision and smoothness of the surface. By customer’s wish the machines might be implemented, taking into account the linear displacement and positioning through installation of a digital indication.
STANDARD MACHINE SPECIFICATION | CU800RD | CU1000RD | ||
CAPACITY | Height of centers | mm | 400 | 500 |
Swing over bed | mm | 890 | 1090 | |
Swing over cross slide | mm | 490 | 690 | |
Swing in gap | mm | 1050 | 1250 | |
Width of bed | mm | 700 | ||
Distance between centers | mm | 1500; 3000; 4000; 5000; 6000; 7000; 8000; 9000; 10000 | ||
SPINDLE | Spindle nose DIN 55027 | No | 15 | |
Spindle bore | mm | 155 | ||
Spindle taper | Metric | 160 | ||
HEAD STOCK | Number of spindle speeds | Infinitely variable in 4 sub-ranges | ||
Spindle variable speed sub-ranges | rpm | 3,7-15,6; 14,7-62; 58-250; 235-1000 | ||
Main motor power | kw | 30 | ||
FEEDS | Number of feeds | 160 | ||
Longitudinal feed range | mm/rev | 0,032 – 38,9 | ||
Cross feed range | mm/rev | 0,016 – 19,45 | ||
THREADS | Number of threads | 80 | ||
Metric thread range | mm | 0,5 – 480 | ||
Inch thread range | Tpi | 60 – 1/16 | ||
Module thread range | Module | 0,125 – 120 | ||
DP thread range | DP | 240 – ¼ | ||
CARRIAGE | Cross slide travel | mm | 525 | |
Top slide travel | mm | 270 | ||
TAIL STOCK | Quill diameter | mm | 125 | |
Quill taper | Morse | No.6 | ||
Quill travel | mm | 260 | ||
WEIGHT | For DBC 3000 mm | kg | 7500 | 8050 |
| STANDARD MACHINE SPECIFICATION | CU1250RD | ||
| CAPACITY | Height of centers | mm | 625 |
| Swing over bed | mm | 1320 | |
| Swing over cross slide | mm | 940 | |
| Swing in gap | mm | 1500 | |
| Width of bed | mm | 700 | |
| Distance between centers | mm | 1500; 3000; 4000; 5000; 6000; 7000; 8000; 9000; 10000 | |
| SPINDLE | Spindle nose DIN 55027 | No | 15 |
| Spindle bore | mm | 155 | |
| Spindle taper | Metric | 160 | |
| HEAD STOCK | Number of spindle speeds | Infinitely variable in 4 sub-ranges | |
| Spindle variable speed sub-ranges | rpm | 3,7-15,6; 14,7-62; 58-250; 235-1000 | |
| Main motor power | kw | 30 | |
| FEEDS | Number of feeds | 160 | |
| Longitudinal feed range | mm/rev | 0,032 – 38,9 | |
| Cross feed range | mm/rev | 0,016 – 19,45 | |
| THREADS | Number of threads | 80 | |
| Metric thread range | mm | 0,5 – 480 | |
| Inch thread range | Tpi | 60 – 1/16 | |
| Module thread range | Module | 0,125 – 120 | |
| DP thread range | DP | 240 – ¼ | |
| CARRIAGE | Cross slide travel | mm | 625 |
| Top slide travel | mm | 270 | |
| TAIL STOCK | Quill diameter | mm | 125 |
| Quill taper | Morse | No.6 | |
| Quill travel | mm | 260 | |
| WEIGHT | For DBC 3000 mm | kg | 8550 |
