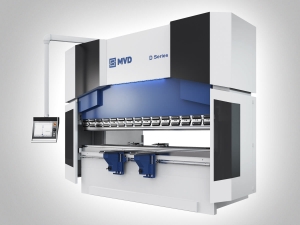

D SERIES

Description

D SERIES

Top of the class, advanced CNC controllers and equipped to handle most complex jobs. 410 mm Stoke and 510 mm throat depth can do a lot more than other.

Standard Features
• Y1, Y2, X, R CNC 4 Axes (X + R Servo)
• 410 mm Stroke, 510 mm Throat Depth
• ESA S650 CNC Control Unit
• ±0,03 accuracy SERVO motorized back gauge. X=750 mm, R=250 mm
• Quick clamp Promecam punch tool holder
• Sliding front sheet support arms with hand Wheel
• Motorized Anti-deflection crowning with original Wila wedges
• MVD special narrow bottom table (European type)
• GIVI optic linear scales
• Standard punch tools (H: 67, 85°, R:08)
• Standard die tools (60×60 mm, 4 Vee V=16-22-35-50 mm, 85°, H:60)
• LED illumination on RAM
Optional Features
• X + R to 4-6-8 axis back gauge options
• Rolleri Rol200 hydraulic punch clamping
• Wila hydraulic punch clamping
• Wide bottom table for Multi Vee dies
• 1.000 mm X axis travel
• AKAS or DSP front laser safety systems
• Additional back gauge fingers
• Front laser safety
