D System

Description

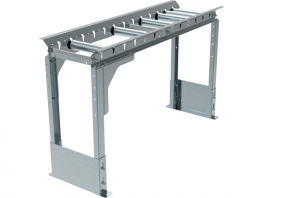

Medium heavy roller conveyors

• A massive, extremely stable and original modular system allows for variability in roller placement and very easy installation of the accessories – manual or digital measuring devices, metal sheet covers between individual rollers, material chute, additional rollers including plastic rollers, material container and the coolant tank.
• Extreme stability and service life is guaranteed by the 3 mm thick galvanized metal sheets that cover all parts of the device.
• The conveyors are manufactured with roller width 200, 300 or 400 mm. Individual modules are 2 and 3 m long and can be mutually connected.
• To achieve maximum stability, the 2 m conveyor is equipped with one leg and the 3 m conveyor with two legs. The utmost legs are additionally secured with a pair of corner reinforcements.
• There are necessary connecting and interconnecting pieces available that allow for installation to a whole range of machines.
• The massive pull-out system allows for adjustable leg height ranging from 865 mm to 935 mm.

Accessories for the D conveyors

DO – Manual measuring device

• A simple and effective measuring of the required material length.
• Can be installed on all types of D conveyors.
• You can set the required length manually on an analogue (millimeter) scale with a simple arrestment.
• Exceptionally stable system of movable slide stop is retractable in order to prevent gripping of the material and consequent damage to the saw band.

(includes the slide stop system and analogue scale of the appropriate length, not the conveyor itself)

DOD – Digital measuring device

• A simple and effective measuring of the required material length.
• Can be installed on all types of D conveyors.
• You can set the required length manually on an analogue (millimeter) scale with a simple arrestment.
• Exceptionally stable system of movable slide stop is retractable in order to prevent gripping of the material and consequent damage to the saw band.

(includes the slide stop system with digital measuring device and a magnetic tape of an appropriate length, not the conveyor itself)

Accessories for conveyors of the D System

	DVO – additional steel rollers for increased carrying capacity Load-carrying capacity of the roller 100 kg. DVL – lightweight plastic rollers Prevent damage to the surface of the material. Load-carrying capacity of the roller 10 kg. DVS – heavy plastic rollers Prevent damage to the surface of the material. Load-carrying capacity of the roller 45 kg.
	DA1 – metal sheet cover between individual rollers Prevents short workpieces from falling through. Length 100 mm. (according to the layout of the rollers)
	DA2 – metal sheet cover between individual rollers Prevents short workpieces from falling through. Length 200 mm. (according to the layout of the rollers)
	DK – tiltable, detachable material chute Intended to be placed behind the cut when cutting short segments in series.
	DZ – material magazine for easier handling Width 100 mm, length 670 mm, carrying lenght 470 mm, load 2000 kg.
	DN – additional conveyor leg
	DX – additional corner reinforcement for detached conveyors
	DT – intermediate piece for connecting of the conveyors to the individual machines
