Description

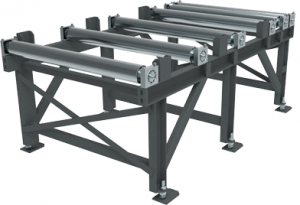

Extremely heavy roller conveyors
- An extremely robust welded construction.
- The conveyors are fitted with thick-walled lathe-manufactured steel rollers 1000 mm wide.
- Strong roller shafts are stored in adjustable steel sleeves with bearings.
- Individual modules are 2 and 3 m long and allow for selection of an optimum length.
- The massive pull-out system allows for adjustable leg height ranging from 795 mm to 820 mm.
| roller width | number of legs | number of rollers | roller diameter | total length [mm] | load-carrying capacity [kg/1m] | |
|---|---|---|---|---|---|---|
| G 1000 / 2m | 1000 | 3 | 6 | 98 | 2000 | 1700 |
| G 1000 / 3m | 1000 | 3 | 8 | 98 | 3000 | 1700 |
GS – Extension to G conveyor
- Module length 2 or 3 m.
- The same frame is fitted with fewer rollers.
| roller width | number of legs | number of rollers | roller diameter | total length [mm] | load-carrying capacity [kg/1m] | |
|---|---|---|---|---|---|---|
| GS 1000 / 2m | 1000 | 3 | 4 | 98 | 2000 | 1700 |
| GS 1000 / 3m | 1000 | 3 | 6 | 98 | 3000 | 1700 |
GP – Conveyor type G with motor-driven rollers
- It enables an easy and accurate feeding especially of heavy materials.
- Smooth speed adjustment by a frequency converter allows for a smooth start and accurate landing of the material fed.
- Portable control unit allows for optimum position of the operator during precise feeding into the desired length.
- Roller shafts are stored in adjustable steel sleeves with bearings.
- Individual modules are 2 and 3 m long and allow for selection of an optimum length.
- Robust welded construction, adjustable leg height ranging from 795 to 820 mm.
| roller width | number of legs | number of rollers | roller diameter | total length [mm] | load-carrying capacity [kg/1m] | motor [kW] | feed speed [m/s] | |
|---|---|---|---|---|---|---|---|---|
| GP 1000 / 2m | 1000 | 3 | 6 | 98 | 2000 | 1700 | 1,5 | 0 – 0,3 |
| GP 1000 / 3m | 1000 | 3 | 8 | 98 | 3000 | 1700 | 1,5 | 0 – 0,3 |
GPS – Extension to GP conveyor
- Module length 2 or 3 m.
- The same frame is fitted with fewer rollers.
- The conveyors are fitted with a chain feed system that is connected to the basic GP conveyor.
| roller width | number of legs | number of rollers | roller diameter | total length [mm] | load-carrying capacity [kg/1m] | |
|---|---|---|---|---|---|---|
| GPS 1000 / 2m | 1000 | 3 | 4 | 98 | 2000 | 1700 |
| GPS 1000 / 3m | 1000 | 3 | 6 | 98 | 3000 | 1700 |
Accessories for the conveyors of the G System
 | GV – Console with a fixed and sliding vertical idle rollerAn indispensable help wh |
