HKM 45-60

Description

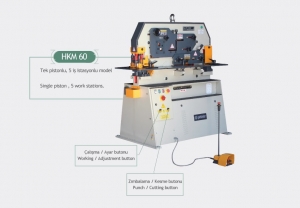

HKM 45-60 Hydraulic Ironworker

Standard Equipments	PUNCHING	HKM 45	HKM 60
	Diameter x max. thickness	Ø 22 x 15 mm	Ø 28 x 15 mm
	Diameter x thickness	Ø 38 x 8 mm	Ø 38 x 11 mm
	Maximum Diameter	Ø 100 x 3 mm	Ø 110 x 3 mm
	Stroke	54 mm	55 mm
	Stroke count in (20 mm)	x 25	x 25
	Throat depth220	220 mm	220 mm
	Working height	955 mm	955 mm
Standard Equipments	STEEL BAR SHEAR	HKM 45	HKM 60
Standard Equipments	Round / Square	Ø 35- 30 mm	Ø 40- 35 mm
Standard Equipments	ANGLE SHEAR	HKM 45	HKM 60
	Angle section (90°)	100 x 100 x 10 mm	120 x 120 x 12 mm
	Angle section (45°)	70 x 6 mm	80 x 8 mm
	Working height	1140 mm	1155 mm
Standard Equipments	SHEET METAL SHEAR	HKM 45	HKM 60
	Sheet metal	200 x 15 mm	200 x 20 mm
	Sheet metal	300 x 12 mm	300 x 15 mm
	Blade Length	317 mm	317 mm
	Shearing with angle	80 x 10 mm	80 x 10 mm
	Working height	955 mm	955 mm
Standard Equipments	NOTCHING	HKM 45	HKM 60
	Thickness	8 mm	10 mm
	Width	42 mm	42 mm
	Depth	100 mm	100 mm
	Working height	955 mm	955 mm
Optional Equipments	OPTIONAL TOOLS	HKM 45	HKM 60
	U-I Section blades (for UPN – IPN cutting)	80 x 45 mm	80 x 45 mm
		40 x 5 mm	80 x 9 mm
Optional Equipments	Special V-Notching tooling	100 x 100 x 8 mm	100 x 100 x 10 mm
Optional Equipments	V – bending Press Brake Bar bend Max.	100 x 12 mm	100 x 12 mm
Optional Equipments	V – bending Press Brake Sheet bend. max.
Optional Equipments	Punching on notcher Throat depth	85 mm	110 mm
Optional Equipments	Punching on notcher Max. capacity	Ø 18 x 12 mm	Ø 20 x 12 mm
	TECHNICAL DATA	HKM 45	HKM 60
	Motor Power	4 kW	4 kW
	Weight	1400 kg	1440 kg
	Machine Dimensions (LxWxH)	1500x950x1680 mm	1520x950x1780 mm
	Power (Pressure)	45 ton	60 ton
