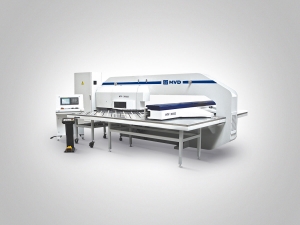

Description
Standard Equipments
• 4 Axes CNC System
• FANUC PC CNC unit, servo motors and drivers
• Rexroth and HL hydraulic unit
• 32 Stations Turret 10 A Stations 16 B Stations 2 C Stations4 D Station
(2 of them Auto Index)
• Repositioning of Clamps
• Automatic reference
• CAD/CAM program
• Automatic Clamping
Optional Equipments
• ToolAdaptors
• ExtraDindexstation
• Thin&ThickTurretTools
| iPunch SERIES | 30322-600 | 30322-900 | |
|---|
| Press Capacity | 30 | 30 | ton |
| Max. Sheet Dimensions, Table Size | 1250 x 4000 | 1250 x 5000 | mm |
| X Axis Stroke | 2000+Reposition | 2500+Reposition | mm |
| Y Axis Stroke | 1250 | 1250 | mm |
| Maximum Sheet Thickness (Mildsteel) | 6,0 | 6,0 | mm |
| Maximum Sheet Weight | 160,0 | 160,0 | kg |
| Biggest Tool Hole Diameter | 88,9 | 88,9 | mm |
| Turret Options | 32 | 32 | Station |
| Turret Stations Feature | | 10 A Stations | øMax:12,7 mm | | 16 B Stations | øMax:31,7mm | | 2 C Stations | øMax:50,8mm | | 4 D Stations | øMax:88,9mm” |
| | 10 A Stations | øMax:12,7 mm | | 16 B Stations | øMax:31,7mm | | 2 C Stations | øMax:50,8mm | | 4 D Stations | øMax:88,9mm” |
| Station |
| Auto index | 2 D Stations (4 D Optional) | 2 D Stations (4 D Optional) | Station |
| Table | Brush and Roller | Brush and Roller | type |
| Positioning Accuracy | ± 0,1 | ± 0,1 | mm |
| Hits Per Minute | 600 | 900 | hpm |
| X, Y Axial Speeds | 70 | 70 | m/min. |
| X,Y Axial Vectorel Speed | 100 | 100 | m/min. |
| Manual Clamp Quantity | 3 Manual (Auto Clamp Optional) | 3 Manual (Auto Clamp Optional) | quantity |
| Turret Rotations Per Minute | 30 | 30 | rpm |
| Tool Change Time | 2,5 | 2,5 | Second |
| Number of Axis | 4 | Lor4 | pcs. |
| Control Unit | FANUC | FANUC | type |
| CAD/CAM | Metalix | Metalix | type |
| Oil Tank | 200 | 200 | lt |
| Main Motor | 11 | 11 | kW |
| Air Pressure | 0,85 | 0,85 | Mpa |
| Overall Dimensions (L x W x H) | 5500x4500x2100 | 5500x4500x2100 | mm. |
| Approx. Weight | 15.000 | 15.000 | kg. |
